Glass Fiber Reinforcing Mesh Impregnated With Epoxy Resin For Transformer

    Glass Fiber Grid Impregnated With Epoxy Resin consists of high strength E-glass yarn without wax, which is woven by special technology. It has advantage of proportional spacing and fixing meshes.After coated with high-quality epoxy resin, the product provides good hardness and toughness, being able to meet the requirement of the technology for reinforcing moulding shape of dry transformer. It is an excellent reinforcing material for the production process of dry transformer.
   Glass Riber Reinforcing Mesh impregnated with solventless resin is adopted with VPI technology which offers the characters of high-voltage resistance and tiny partial discharge.

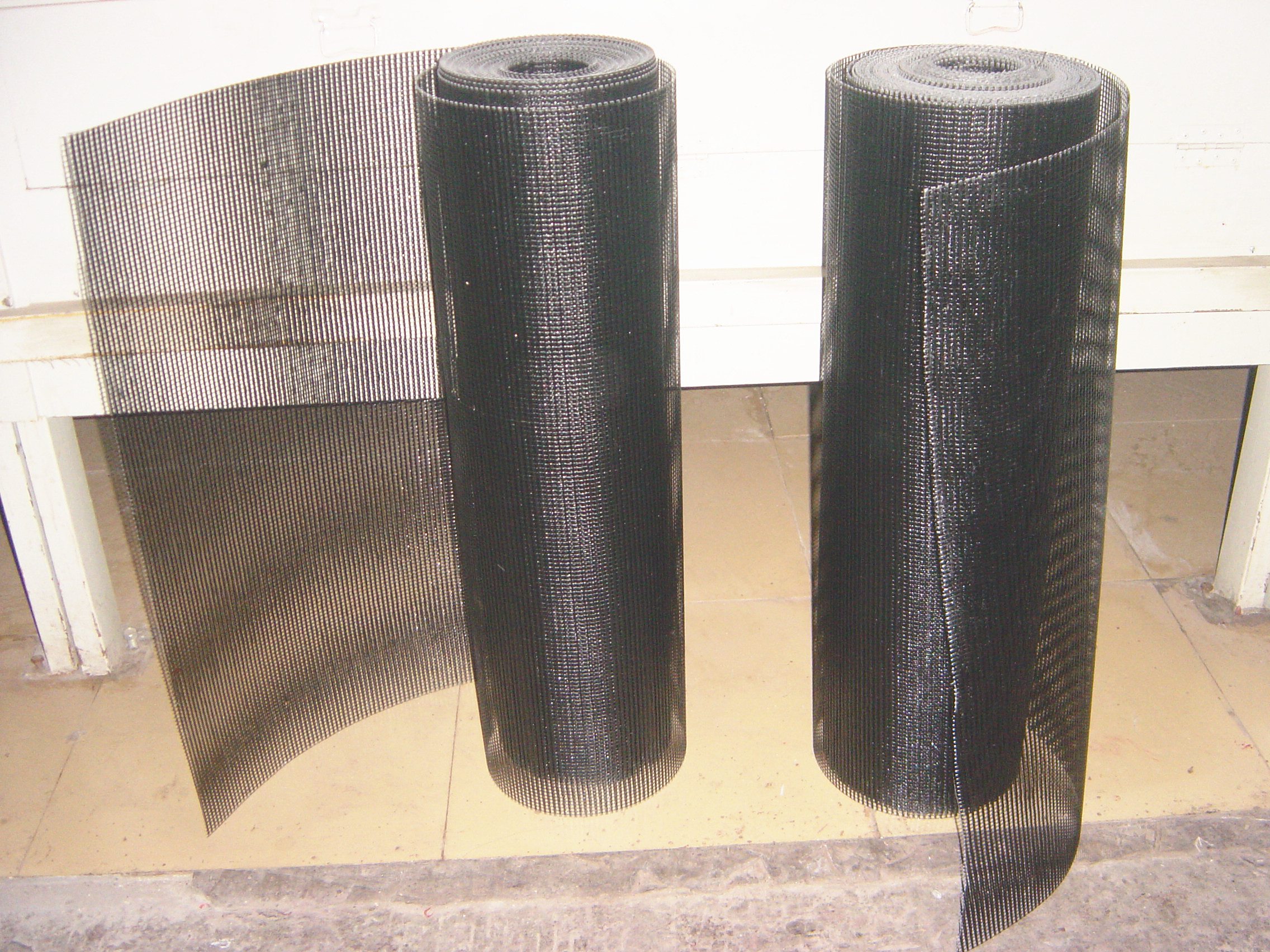

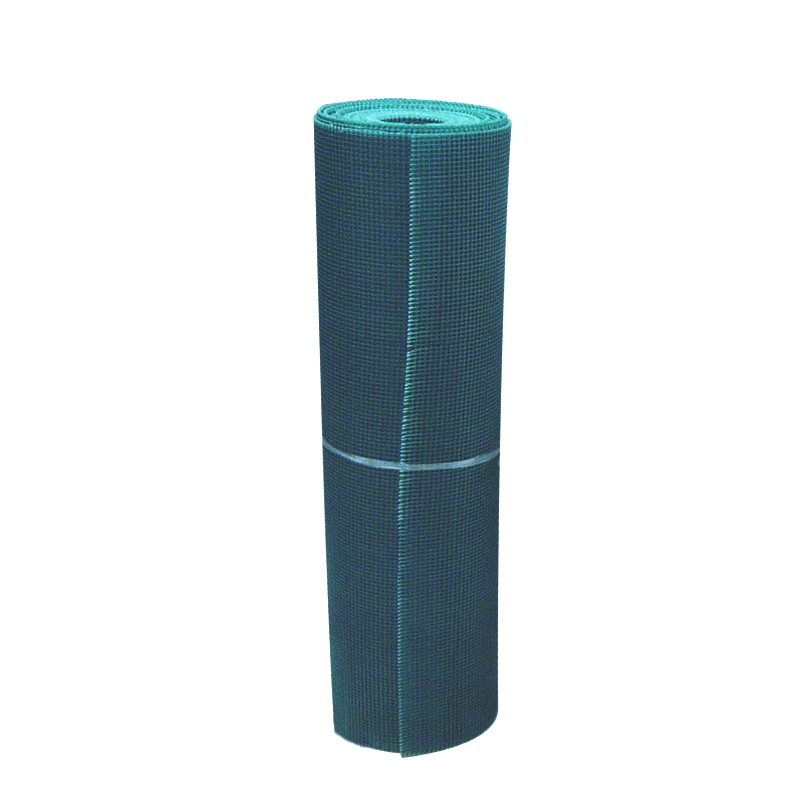

Brown Color                                             Green Color                                      Black Color

Property:

Thermal class

—

F(155 ℃)

Resin content

%

11-40

Rate of sorption

%

≤8

Bending Strength

N

≥70

Tensile strength

N

1000-5000

Breakdown voltage(along the surface)

KV

≥18

Insulation resistance(along the surface)

Ω

≥1×1013



Style

Thickness
（ mm）

Width
（ mm）

Package
（ M/roll）

50354

0.30±0.03

1000

100-200

50454

0.40±0.04

1000

100-200

50654

0.60±0.06

1000

100

51254/51275

1.2±0.12

1000/1200

50

51654/51675

1.6±0.16

1000

50

51955/51975

1.9±0.19

1000/1200

50

52098

2.0±0.2

1000/1200

50

52455/52475

2.4±0.24

1000/1200

40-50

52555/52575

2.5±0.25

1000

40


Test Thickness:


Storage：

* Please put the product in the dry and ventilated place.

* Don't open up the package if you don't use it in time for avoiding soiled the product so as to
ensure the insulation.

* Old and new customers are warmly welcome and orders according to the special requirements of
customers are also acceptable.

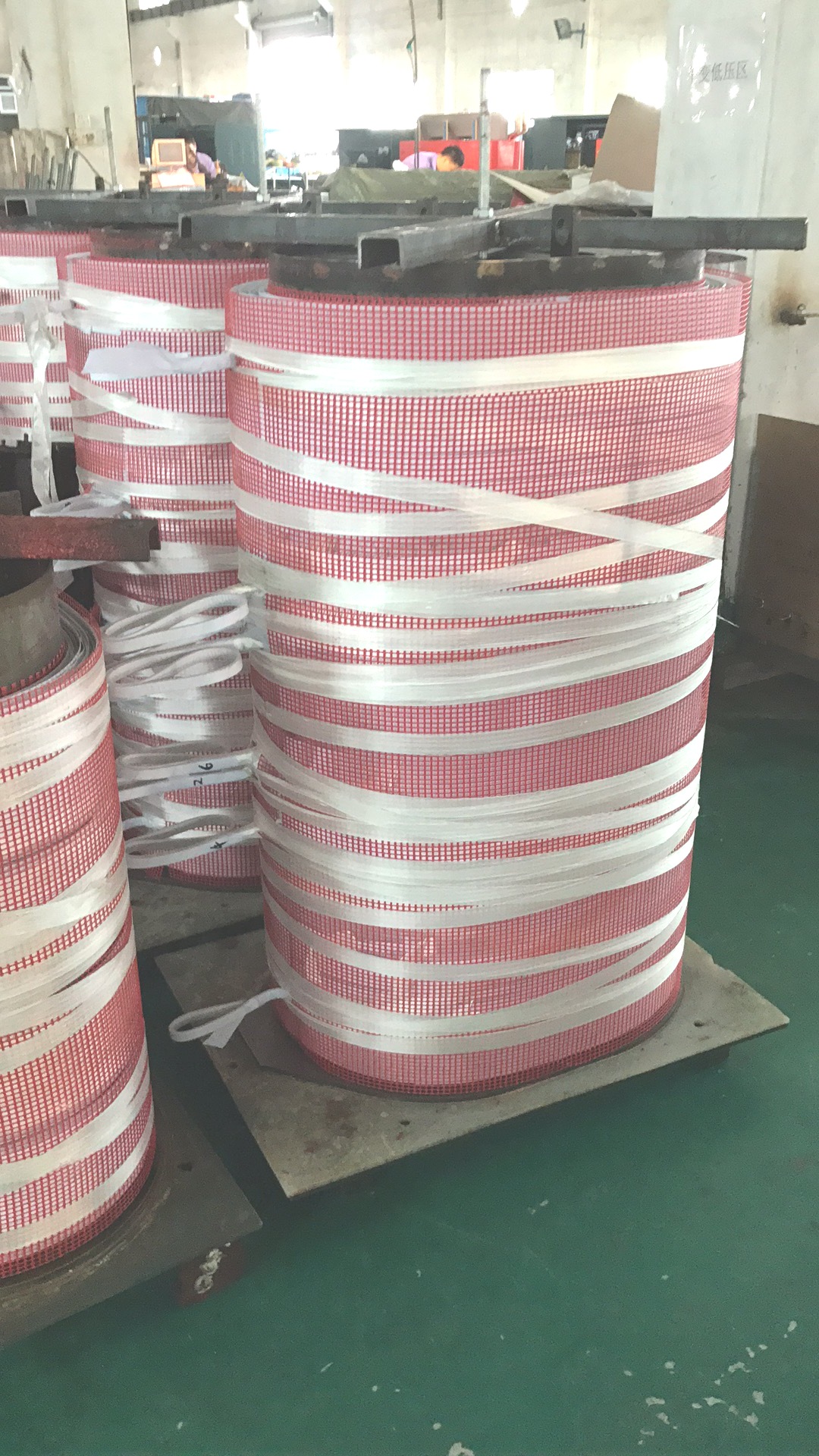

Application In Transformer:
